In modern plastic manufacturing, reducing weight while improving strength and appearance has become a major priority. This is why gas assist molding has become one of the most valuable technologies in advanced injection molding.
From automotive handles and appliance housings to large industrial plastic components, gas assisted injection molding helps manufacturers produce lighter, stronger, and more cost-effective parts with excellent surface quality.
As industries continue to demand complex geometries, reduced sink marks, and lower material consumption, manufacturers increasingly rely on technologies like gas assist molding simulation and optimized mold design to improve efficiency and minimize production risks.
Gas assist molding is an advanced plastic injection molding technology in which high-pressure inert gas—typically nitrogen—is injected into molten plastic inside the mold cavity.
The gas pushes the molten resin toward the mold walls, creating hollow sections inside thick plastic areas. This process reduces material usage while maintaining structural integrity.
Unlike conventional injection molding, where the cavity is completely filled with plastic, gas assisted injection molding intentionally uses gas pressure to form internal channels.
The process is especially useful for:
Thick-wall plastic parts
Large components
Cosmetic surfaces requiring low sink marks
Lightweight structural products
Complex geometries

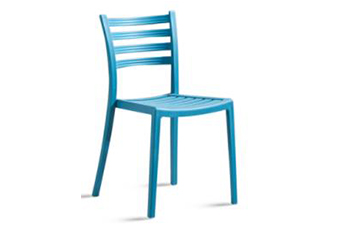

Today, gas assist technology is widely used in automotive, furniture, consumer electronics, medical equipment, and appliance manufacturing.
The gas assist molding process consists of several precise stages.
Molten plastic is first injected into the mold cavity, but the cavity is not completely filled.
Typically, around 70%–95% of the cavity volume is filled with resin.
High-pressure nitrogen gas is injected into the molten core through specially designed gas pins or nozzles.
The gas follows the path of least resistance through the thickest sections of the part.
The gas displaces molten resin outward toward the cavity walls, forming hollow channels inside the component.
This creates:
Uniform wall thickness
Reduced shrinkage
Improved dimensional stability
The internal gas pressure continues holding the material against the mold surface during cooling.
This minimizes defects such as:
Sink marks
Warpage
Internal stress
After cooling, the gas is vented, and the finished part is ejected from the mold.
Because hollow sections replace solid plastic cores, manufacturers use less resin.
This can significantly reduce raw material costs, especially for large parts.
Lightweight components are critical in industries such as automotive and aerospace.
Gas assisted injection molding helps reduce weight without sacrificing rigidity.
Thick plastic sections often create visible sink marks in traditional molding.
Gas pressure compensates for material shrinkage, producing smoother cosmetic surfaces.
The hollow-channel structure often creates better stiffness-to-weight performance than fully solid parts.
Uniform internal pressure improves dimensional consistency and reduces deformation.
Less material means faster cooling.
This improves production efficiency and reduces manufacturing costs.
Gas assist molding creates cleaner external surfaces, making it ideal for visible consumer products.
Proper part and mold design are essential for successful gas assist molding.
Wall thickness must be carefully controlled.
Best practices include:
Avoid extremely thin sections
Maintain gradual wall transitions
Use thicker sections where gas channels are intended
Uniform wall thickness improves gas penetration consistency.
Gas channels should follow the thickest flow paths.
Poor channel placement can cause:
Blow-through defects
Incomplete filling
Uneven wall thickness
Experienced mold engineers use simulation software to optimize gas pathways.
Sharp corners can interrupt gas flow.
Recommended practices include:
Rounded corners
Smooth transitions
Balanced flow geometry
These features help maintain stable gas penetration.
Proper gate placement is critical.
Incorrect gate positioning may lead to:
Gas fingering
Uneven filling
Weld lines
Engineers typically place gates near thicker regions to support effective gas penetration.
Proper venting prevents trapped air and burn marks.
Effective vent design improves:
Filling stability
Surface quality
Process consistency
Not all plastics perform equally in gas assisted injection molding.
Common materials include:
ABS
PC/ABS
Polypropylene (PP)
Nylon (PA)
Polycarbonate (PC)
Material viscosity strongly influences gas penetration behavior.
Gas assist molding has become one of the most important technologies in modern plastic manufacturing.
By combining lightweight design, excellent surface quality, lower material usage, and improved structural performance, gas assisted injection molding offers major advantages over traditional molding methods.
At the same time, advancements in gas assist molding simulation now allow manufacturers to optimize tooling, reduce defects, and accelerate product development with greater precision than ever before.
For companies seeking competitive manufacturing advantages, investing in proper mold design, simulation analysis, and experienced tooling partners such as jeward can significantly improve production success.
As lightweight engineering and sustainable manufacturing continue driving global demand, gas assist molding will remain a critical process for the future of plastic product development.
Nitrogen is the most commonly used gas because it is inert, stable, and safe for industrial processing.
Automotive, furniture, appliance, electronics, and medical industries benefit significantly from gas assist technology.
Yes. Because the process reduces resin consumption and lowers part weight, it supports sustainability and material efficiency goals.
Structural foam molding uses foaming agents to create cellular structures, while gas assist molding uses high-pressure gas to form hollow internal channels.
